在mapbox中实现3dtiles的加载和绘制(移动端)
一、解析3dtiles数据和提取gltf模型文件
可参照这篇文章：解析3dTiles数据和提取b3dm模型文件

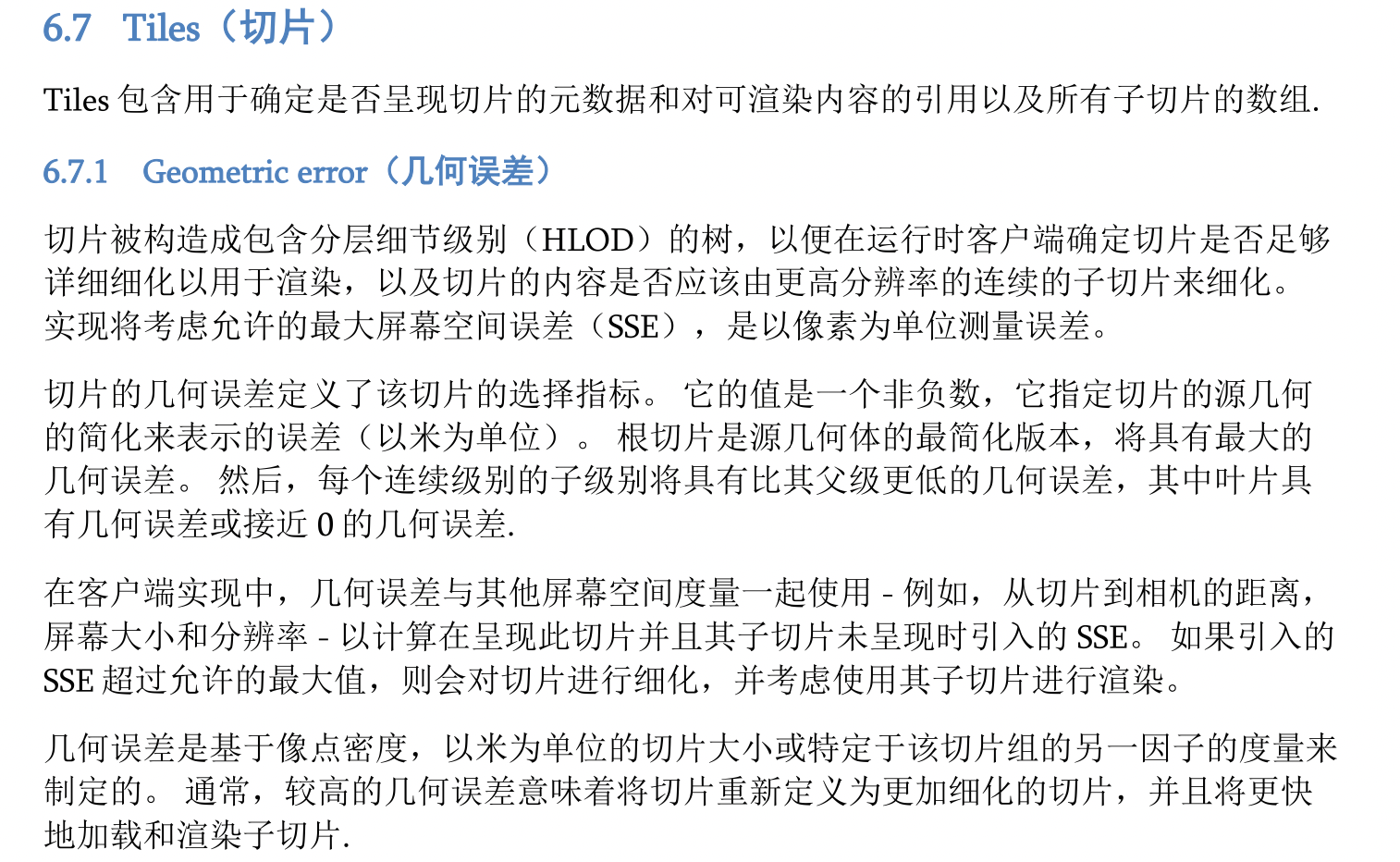

1.解析tileset.json文件
可以参照 cesium.js 或者 cesium-native，这两个库都是借用第三方库rapidjson进行解析。
以下是cesium-native的示例代码：
namespace {
std::optional<BoundingVolume> getBoundingVolumeProperty(
const rapidjson::Value& tileJson,
const std::string& key);
TilesSelection::UriType getTileType(const std::string& uri){
std::string::size_type pos = uri.rfind('.');
std::string strExt = uri.substr(pos == std::string::npos ? uri.length() : pos+1);
TilesSelection::UriType uriType = TilesSelection::UriType::Json;
if (strExt.compare("json") == 0) {
uriType = TilesSelection::UriType::Json;
} else if (strExt.compare("b3dm") == 0){
uriType = TilesSelection::UriType::B3dm;
} else {
assert(0);
Log::Error("Invalid ext type.");
}
return uriType;
}
} // namespace
bool LoadTileFromJson::execute(
Tile& tile,
const rapidjson::Value& tileJson,
const math::mat4& parentTransform,
TileRefine parentRefine,
Tileset* pTileset) {
if (!tileJson.IsObject()) {
assert(0);
return false;
}
tile.setTileset(pTileset);
const std::optional<math::mat4> tileTransform =
JsonHelpers::getTransformProperty(tileJson, "transform");
math::mat4 transform =
parentTransform * tileTransform.value_or(math::mat4(1.0));
tile.setTransform(transform);
std::optional<double> geometricError =
JsonHelpers::getScalarProperty(tileJson, "geometricError");
if (!geometricError) {
geometricError = tile.getNonZeroGeometricError();
Log::Error(
"Tile did not contain a geometricError. "
"Using half of the parent tile's geometric error.\n");
}
const auto contentIt = tileJson.FindMember("content");
const auto childrenIt = tileJson.FindMember("children");
if (contentIt != tileJson.MemberEnd() && contentIt->value.IsObject()) {
auto uriIt = contentIt->value.FindMember("uri");
if (uriIt == contentIt->value.MemberEnd() || !uriIt->value.IsString()) {
uriIt = contentIt->value.FindMember("url");
}
tile.setEmptyContentState(false);
if (uriIt != contentIt->value.MemberEnd() && uriIt->value.IsString()) {
std::string strUri = uriIt->value.GetString();
size_t pos = 0;
if (std::string::npos != (pos = strUri.find("./")) ){
strUri.erase(pos, 2);
}
TileID contentUri = tile.getbaseUrl() + "/" + strUri;
tile.setTileID(contentUri);
tile.setType(getTileType(contentUri));
tile.setState(Tile::LoadState::Unloaded);
}
std::optional<BoundingVolume> contentBoundingVolume =
getBoundingVolumeProperty(contentIt->value, "boundingVolume");
if (contentBoundingVolume) {
tile.setContentBoundingVolume(transformBoundingVolume(transform, contentBoundingVolume.value()));
}
} else {
TileID emptyTile = "/emptyTile-" + Tool::toString(geometricError.value());
tile.setTileID(emptyTile);
tile.setEmptyContentState(true);
tile.setState(Tile::LoadState::Done);
}
std::optional<BoundingVolume> boundingVolume =
getBoundingVolumeProperty(tileJson, "boundingVolume");
if (!boundingVolume) {
assert(0);
Log::Error("Tile did not contain a boundingVolume\n");
return false;
}
tile.setBoundingVolume(
transformBoundingVolume(transform, boundingVolume.value()));
const math::double3 scale = math::double3(
length(transform[0]),
length(transform[1]),
length(transform[2]));
const double maxScaleComponent =
std::max(scale.x, std::max(scale.y, scale.z));
tile.setGeometricError(geometricError.value() * maxScaleComponent);
std::optional<BoundingVolume> viewerRequestVolume =
getBoundingVolumeProperty(tileJson, "viewerRequestVolume");
if (viewerRequestVolume) {
tile.setViewerRequestVolume(
transformBoundingVolume(transform, viewerRequestVolume.value()));
}
const auto refineIt = tileJson.FindMember("refine");
if (refineIt != tileJson.MemberEnd() && refineIt->value.IsString()) {
std::string refine = refineIt->value.GetString();
if (refine == "REPLACE") {
tile.setRefine(TileRefine::Replace);
} else if (refine == "ADD") {
tile.setRefine(TileRefine::Add);
} else {
std::string refineUpper = refine;
std::transform(
refineUpper.begin(),
refineUpper.end(),
refineUpper.begin(),
[](unsigned char c) -> unsigned char {
return static_cast<unsigned char>(std::toupper(c));
});
if (refineUpper == "REPLACE" || refineUpper == "ADD") {
Log::Warning(
"Tile refine value %s should be uppercase: %s\n",
refine.c_str(),
refineUpper.c_str());
tile.setRefine(
refineUpper == "REPLACE" ? TileRefine::Replace : TileRefine::Add);
} else {
Log::Warning(
"Tile contained an unknown refine value: %s\n",
refine.c_str());
}
}
} else {
tile.setRefine(parentRefine);
}
if (childrenIt->value.IsArray()) {
const auto& childrenJson = childrenIt->value;
std::vector<Tile*>& childTiles = tile.getChildren();
for (rapidjson::SizeType i = 0; i < childrenJson.Size(); ++i) {
const auto& childJson = childrenJson[i];
Tile* child = new Tile();
child->setParent(&tile);
child->setbaseUrl(tile.getbaseUrl());
child->_depth = tile._depth + 1;
bool result = LoadTileFromJson::execute(
*child,
childJson,
transform,
tile.getRefine(),
pTileset);
if (result) {
Tileset* pTileset = tile.getTileset();
++pTileset->_statistics.numberOfTilesTotal;
childTiles.push_back(child);
} else {
Utility::Tool::deletePtr(child);
}
} // end for
} // end if
return true;
}
namespace {
std::optional<BoundingVolume> getBoundingVolumeProperty(
const rapidjson::Value& tileJson,
const std::string& key) {
const auto bvIt = tileJson.FindMember(key.c_str());
if (bvIt == tileJson.MemberEnd() || !bvIt->value.IsObject()) {
return std::nullopt;
}
const auto extensionsIt = bvIt->value.FindMember("extensions");
if (extensionsIt != bvIt->value.MemberEnd() &&
extensionsIt->value.IsObject()) {
assert(0);
return std::nullopt;
}
const auto boxIt = bvIt->value.FindMember("box");
if (boxIt != bvIt->value.MemberEnd() && boxIt->value.IsArray() &&
boxIt->value.Size() >= 12) {
const auto& a = boxIt->value.GetArray();
for (rapidjson::SizeType i = 0; i < 12; ++i) {
if (!a[i].IsNumber()) {
return std::nullopt;
}
}
return OrientedBoundingBox(
math::double3(a[0].GetDouble(), a[1].GetDouble(), a[2].GetDouble()),
math::mat3(
a[3].GetDouble(),
a[4].GetDouble(),
a[5].GetDouble(),
a[6].GetDouble(),
a[7].GetDouble(),
a[8].GetDouble(),
a[9].GetDouble(),
a[10].GetDouble(),
a[11].GetDouble()));
}
const auto regionIt = bvIt->value.FindMember("region");
if (regionIt != bvIt->value.MemberEnd() && regionIt->value.IsArray() &&
regionIt->value.Size() >= 6) {
const auto& a = regionIt->value;
for (rapidjson::SizeType i = 0; i < 6; ++i) {
if (!a[i].IsNumber()) {
return std::nullopt;
}
}
assert(0);
return std::nullopt;
}
const auto sphereIt = bvIt->value.FindMember("sphere");
if (sphereIt != bvIt->value.MemberEnd() && sphereIt->value.IsArray() &&
sphereIt->value.Size() >= 4) {
const auto& a = sphereIt->value;
for (rapidjson::SizeType i = 0; i < 4; ++i) {
if (!a[i].IsNumber()) {
return std::nullopt;
}
}
return BoundingSphere(
math::double3(a[0].GetDouble(), a[1].GetDouble(), a[2].GetDouble()),
a[3].GetDouble());
}
return std::nullopt;
}
} // namespace
2.解析b3dm模型文件
如上图所示，一个b3dm模型中，存储了很多信息，我们的目标是提取出glTF二进制文件，所以需要出去表头字节数：
uint32_t byteOffset = 0;
std::string err;
if (!tilegltf::util::getGlbByteOffset(&err, (unsigned char*)data->data(), (unsigned int)data->size(), byteOffset)){
mbgl::Log::Error(Event::Style, "Failed to get glb byte offset: %s \n", err.c_str());
assert(0);
return;
}
uint8_t* pData = (uint8_t*)data->data() + byteOffset; // delete b3dm head byte
uint32_t dataLen = static_cast<unsigned int>(data->size()) - byteOffset;
std::shared_ptr<const std::string> resData = std::make_shared<const std::string>(reinterpret_cast<const char *>(pData), dataLen);
bool getGlbByteOffset(std::string *err,
unsigned char *bytes,
unsigned int size,
unsigned int& byteOffset) {
if (size < 28) {
if (err) {
(*err) = "Too short data size for b3dm Binary.";
}
return false;
}
if (bytes[0] == 'b' && bytes[1] == '3' && bytes[2] == 'd' &&
bytes[3] == 'm') {
// ok
} else {
if (err) {
(*err) = "Invalid magic.";
}
return false;
}
unsigned int version; // 4 bytes
unsigned int byteLength; // 4 bytes
unsigned int featureTableJSONByteLength; // 4 bytes
unsigned int featureTableBinaryByteLength;// 4 bytes;
unsigned int batchTableJSONByteLength; // 4 bytes
unsigned int batchTableBinaryByteLength; // 4 bytes;
// @todo { Endian swap for big endian machine. }
memcpy(&version, bytes + 4, 4);
memcpy(&byteLength, bytes + 8, 4);
memcpy(&featureTableJSONByteLength, bytes + 12, 4);
memcpy(&featureTableBinaryByteLength, bytes + 16, 4);
memcpy(&batchTableJSONByteLength, bytes + 20, 4);
memcpy(&batchTableBinaryByteLength, bytes + 24, 4);
if ((byteLength != size) || (byteLength < 1) ) {
if (err) {
(*err) = "Invalid b3dm binary.";
}
return false;
}
byteOffset = 28 + featureTableJSONByteLength + featureTableBinaryByteLength +
batchTableJSONByteLength + batchTableBinaryByteLength;
return true;
}
二、绘制glTF模型
1.坐标转换
3dtiles的坐标为墨卡托坐标系，单位是米，需要转换为mapbox的坐标系，单位是像素：
//米转像素
const double WEBMERCATOR_EXTENT = 20037508.3427892;
double worldSizeMeter = WEBMERCATOR_EXTENT * 2.0; // 米的世界范围
double scale = Projection::worldSize(state.getScale()) / worldSizeMeter;
matrix::scale(_overlayParamter.modelMat, _overlayParamter.modelMat, scale , scale , 1.0);
// 转换到mapbox坐标系(原点在左上角)
mat4 matMapbox;
matrix::identity(matMapbox);
matMapbox[12] = WEBMERCATOR_EXTENT;
matMapbox[13] = WEBMERCATOR_EXTENT;
matrix::scale(matMapbox, matMapbox, 1.0, -1.0, 1.0);
matrix::multiply(_overlayParamter.modelMat, _overlayParamter.modelMat, matMapbox);
//将模型坐标转换为世界坐标(原点在center)
matrix::multiply(_overlayParamter.modelMat, _overlayParamter.modelMat, _outMat);
2.mapbox添加GL_UNSIGNED_INT索引类型
mapbox中OpenGL的绘制，默认的顶点索引类型为UShort，不支持GL_UNSIGNED_INT的索引类型，需要添加GL_UNSIGNED_INT类型：
void Context::draw(const gfx::DrawMode& drawMode,
std::size_t indexOffset,
std::size_t indexLength,
gfx::ElementIndexDataType indexDataType) {
switch (drawMode.type) {
case gfx::DrawModeType::Points:
#if not MBGL_USE_GLES2
// In OpenGL ES 2, the point size is set in the vertex shader.
pointSize = drawMode.size;
#endif // MBGL_USE_GLES2
break;
case gfx::DrawModeType::Lines:
case gfx::DrawModeType::LineLoop:
case gfx::DrawModeType::LineStrip:
lineWidth = drawMode.size;
break;
default:
break;
}
auto byteSize = [](platform::GLenum value)->std::size_t{
switch (value) {
case GL_UNSIGNED_BYTE: return sizeof(uint8_t);
case GL_UNSIGNED_SHORT: return sizeof(uint16_t);
case GL_UNSIGNED_INT: return sizeof(uint32_t);
}
return sizeof(uint16_t);
};
platform::GLenum dataType = Enum<gfx::ElementIndexDataType>::to(indexDataType);
std::size_t bytesize = byteSize(dataType);
MBGL_CHECK_ERROR(glDrawElements(
Enum<gfx::DrawModeType>::to(drawMode.type),
static_cast<GLsizei>(indexLength),
dataType,
reinterpret_cast<GLvoid*>(bytesize * indexOffset)));
}
gfx::ElementIndexDataType mapElementIndexDataType(int32_t type)
{
switch (type)
{
case TINYGLTF_COMPONENT_TYPE_UNSIGNED_SHORT:
return gfx::ElementIndexDataType::UShort;
case TINYGLTF_COMPONENT_TYPE_UNSIGNED_INT:
return gfx::ElementIndexDataType::UInt;
}
assert(false);
return gfx::ElementIndexDataType::UShort;
}
三、在mapbox中添加3dtiles的layer
1.在mapbox中添加3dtiles的layer
2.mapbox添加style layer的代码流程图
3.mapbox添加render layer代码流程图
`
4.mapbox请求数据代码流程图
四、异步加载
1.在class Resource中添加3dtiles的类型
class Resource {
public:
enum Kind : uint8_t {
Unknown = 0,
Style,
Source,
Tile,
Glyphs,
SpriteImage,
SpriteJSON,
Image,
FX3dTile
};
Resource Resource::FX3dTile(const std::string& url,
LoadingMethod loadingMethod) {
return Resource {
Resource::Kind::FX3dTile,
url,
loadingMethod
};
}
2.网络请求
template <typename T>
TileLoader<T>::TileLoader(T& tile_,
const FX3dTileID& id,
const TileParameters& parameters)
: tile(tile_),
necessity(TileNecessity::Optional),
resource(Resource::FX3dtilesTile(id)), // 网络
// resource(Resource::FX3dtilesTile("file://"+id)), // 本地
fileSource(parameters.fileSource){
assert(!request);
if (fileSource->supportsCacheOnlyRequests()) {
// When supported, the first request is always optional, even if the TileLoader
// is marked as required. That way, we can let the first optional request continue
// to load when the TileLoader is later changed from required to optional. If we
// started out with a required request, we'd have to cancel everything, including the
// initial optional part of the request.
loadFromCache();
} else if (necessity == TileNecessity::Required) {
// When the file source doesn't support cache-only requests, and we definiitely need this
// data, we can start out with a network request immediately.
loadFromNetwork();
} else {
// When the FileSource doesn't support cache-only requests, we do nothing until the
// data is definitely required.
}
}
Resource Resource::FX3dtilesTile(const std::string& url) {
return Resource {
Resource::Kind::FX3dTile,
url
};
}
五、几何误差
1.规范中的定义
2.计算SSE
sseDenominator = 2.0 * Math.tan(0.5 * frustum._fovy);
double ViewState::computeScreenSpaceError(
double geometricError,
double distance) const noexcept {
// Avoid divide by zero when viewer is inside the tile
distance = glm::max(distance, 1e-7);
const double sseDenominator = this->_sseDenominator;
return (geometricError * this->_viewportSize.y) / (distance * sseDenominator);
}
关于tile到相机的distance的计算：
double OrientedBoundingBox::computeDistanceSquaredToPosition(
const glm::dvec3& position) const noexcept {
const glm::dvec3 offset = position - this->getCenter();
const glm::dmat3& halfAxes = this->getHalfAxes();
glm::dvec3 u = halfAxes[0];
glm::dvec3 v = halfAxes[1];
glm::dvec3 w = halfAxes[2];
const double uHalf = glm::length(u);
const double vHalf = glm::length(v);
const double wHalf = glm::length(w);
u /= uHalf;
v /= vHalf;
w /= wHalf;
const glm::dvec3 pPrime(
glm::dot(offset, u),
glm::dot(offset, v),
glm::dot(offset, w));
double distanceSquared = 0.0;
double d;
if (pPrime.x < -uHalf) {
d = pPrime.x + uHalf;
distanceSquared += d * d;
} else if (pPrime.x > uHalf) {
d = pPrime.x - uHalf;
distanceSquared += d * d;
}
if (pPrime.y < -vHalf) {
d = pPrime.y + vHalf;
distanceSquared += d * d;
} else if (pPrime.y > vHalf) {
d = pPrime.y - vHalf;
distanceSquared += d * d;
}
if (pPrime.z < -wHalf) {
d = pPrime.z + wHalf;
distanceSquared += d * d;
} else if (pPrime.z > wHalf) {
d = pPrime.z - wHalf;
distanceSquared += d * d;
}
return distanceSquared;
}
3.判断是否满足sse
maximumScreenSpaceError = 16.
bool GltfManager::meetsSse(
const mbgl::TransformState& state,
const Tile& tile,
const double distance) const {
const double maxScaleComponent = util::getMaxScaleComponent(_fx3dtilesParamter.mercatorToMapboxMat);
const double geometricError = tile.geometricError * maxScaleComponent;
// Does this tile meet the screen-space error?
const double sse =
computeScreenSpaceError(state, geometricError, distance);
return sse < maximumScreenSpaceError;
}
六、3dtiles的tileset的遍历
此部分可以参考cesium-native.
相关函数的代码实现：
FX3DTilesetTraversal::FX3DTilesetTraversal(){}
FX3DTilesetTraversal::~FX3DTilesetTraversal(){}
bool FX3DTilesetTraversal::selectTiles(
std::shared_ptr<tilegltf::Tileset> tileset,
const mbgl::TransformState& state){
if (tileset == nullptr) {
return false;
}
tileset->clearLoadQueue();
initializeParameter(state);
Tile* pRootTile = tileset->pRootTile.get();
visitTileIfNeeded(*tileset, state, 0, false, *pRootTile);
tileset->sortLoadQueue();
return true;
}
void FX3DTilesetTraversal::initializeParameter(const mbgl::TransformState& state){
state.getProjectionMatrix(_fx3dtilesParamter.projMat);
state.getViewMatrix(_fx3dtilesParamter.viewMat);
// tileModelmat
math::mat4 modelMat;
state.getModelMatrix(modelMat);
//convert to mapbox(unit:pixel)
math::mat4 mercatorToMapbox;
util::getMercatorToMapboxMat(mercatorToMapbox, state);
_fx3dtilesParamter.modelMat = _fx3dtilesParamter.modelMat * mercatorToMapbox;
_fx3dtilesParamter.modelMat = modelMat * _fx3dtilesParamter.modelMat;
// cameraPos
math::mat4 invViewMat;
invViewMat *= inverse(_fx3dtilesParamter.viewMat);
math::double4 cameraPos{0.0, 0.0, 0.0, 1.0};
cameraPos = invViewMat * cameraPos;
_fx3dtilesParamter.cameraPos = cameraPos.xyz;
// camFrustum
math::mat4 projMat;
state.getProjectionMatrix(projMat);
math::mat4 invProjMat = inverse(projMat);
_fx3dtilesParamter.camFrustum = fromClipMatrix(projMat, invProjMat);
}
void FX3DTilesetTraversal::visitTileIfNeeded(
tilegltf::Tileset& tileset,
const mbgl::TransformState& state,
uint32_t depth,
bool ancestorMeetsSse,
Tile& tile) {
// whether we should visit this tile
bool shouldVisit = true;
if (!isVisibleFromCamera(tile.boundingVolume)) {
// frustum culling is enabled so we shouldn't visit this off-screen tile
shouldVisit = false;
}
if (!shouldVisit) {
return;
}
return this->visitTile(
tileset,
state,
depth,
ancestorMeetsSse,
tile);
}
void FX3DTilesetTraversal::visitTile(
tilegltf::Tileset& tileset,
const mbgl::TransformState& state,
uint32_t depth,
bool ancestorMeetsSse,
Tile& tile) {
const double distance = std::sqrt(max(
computeDistanceSquaredToBoundingVolume(tile.boundingVolume), 0.0));
// If this is a leaf tile, render it
if (isLeaf(tile)) {
tileset.addTileToLoadQueue(tile, distance);
return;
}
const bool unconditionallyRefine = tile.getUnconditionallyRefine();
const bool bMeetsSse = meetsSse(state, tile, distance);
bool wantToRefine = unconditionallyRefine || (!bMeetsSse && !ancestorMeetsSse);
if (!wantToRefine) {
if (bMeetsSse && !ancestorMeetsSse) {
tileset.addTileToLoadQueue(tile, distance);
}
return;
}
// Refine
if (tile.hasContent()) {
if (tile.content->uriType == Content::UriType::Json) {
tile.content->tileset = tileset.tilesetRequestManager->getTileset(tile.id);
if (tile.content->tileset != nullptr){
Tile* pRootTile = tile.content->tileset->pRootTile.get();
this->visitTileIfNeeded(
tileset,
state,
0,
false,
*pRootTile);
}
else{
tileset.addTilesetToLoadQueue(tile, distance);
}
}
else{ // B3dm
loadAndRenderAdditiveRefinedTile(tileset, tile, distance);
}
}
visitVisibleChildren(tileset, state, depth, ancestorMeetsSse, tile);
return;
}
bool FX3DTilesetTraversal::isLeaf(Tile& tile){
if (tile.content != nullptr && tile.content->uriType == Content::UriType::B3dm) {
return tile.isLeaf();
}
return false;
}
bool FX3DTilesetTraversal::visitVisibleChildren(
tilegltf::Tileset& tileset,
const mbgl::TransformState& state,
uint32_t depth,
bool ancestorMeetsSse,
Tile& tile) {
for (Tile* child : tile.children) {
this->visitTileIfNeeded(
tileset,
state,
depth + 1,
ancestorMeetsSse,
*child);
}
return true;
}
bool FX3DTilesetTraversal::isVisibleFromCamera(const BoundingVolume& boundingVolume) {
math::mat4 viewModelMat = _fx3dtilesParamter.viewMat * _fx3dtilesParamter.modelMat;
const BoundingVolume& viewBoudingBox1 = boundingVolume.transformBoundingVolume(_fx3dtilesParamter.modelMat);
const BoundingVolume& viewBoudingBox = boundingVolume.transformBoundingVolume(viewModelMat);
bool intersect = util::intersectsOBB(_fx3dtilesParamter.camFrustum, viewBoudingBox);
return intersect;
}
double FX3DTilesetTraversal::computeDistanceSquaredToBoundingVolume(
const BoundingVolume& boundingVolume) const {
const BoundingVolume& boundingVolumeTemp = boundingVolume.transformBoundingVolume(_fx3dtilesParamter.modelMat);
double distance = boundingVolumeTemp.computeDistanceSquaredToPosition(_fx3dtilesParamter.cameraPos);
return distance;
}
bool FX3DTilesetTraversal::meetsSse(
const mbgl::TransformState& state,
const Tile& tile,
const double distance) const {
const double maxScaleComponent = util::getMaxScaleComponent(_fx3dtilesParamter.modelMat);
const double geometricError = tile.geometricError * maxScaleComponent;
const double sse =
computeScreenSpaceError(state, geometricError, distance);
return sse < maximumScreenSpaceError;
}
double FX3DTilesetTraversal::computeScreenSpaceError(
const mbgl::TransformState& state,
const double geometricError,
double distance) const {
// Avoid divide by zero when viewer is inside the tile
distance = max(distance, 1e-7);
const double sseDenominator = 2.0 * std::tan(0.5 * state.getFieldOfView());
Size size = state.getSize();
double viewportHeight = size.height;
return (geometricError * viewportHeight) / (distance * sseDenominator);
}
const Tile* FX3DTilesetTraversal::getRenderedTile(const FX3dTileID& tileID) const {
auto it = renderedTiles.find(tileID);
return it != renderedTiles.end() ? &it->second.get() : nullptr;
}
bool FX3DTilesetTraversal::loadAndRenderAdditiveRefinedTile(tilegltf::Tileset& tileset, Tile& tile, const double distance) {
// If this tile uses additive refinement, we need to render this tile in
// addition to its children.
if (tile.refine == Tile::Refine::Add) {
tileset.addTileToLoadQueue(tile, distance);
}
return true;
}
七、缓存处理
缓存处理使用比较简单的方式，仍是按照tile的数量来确定缓存的大小。
当一个tile为请求下来是，先查看其children是否都已经加载，若全都已经加载，则使用children来cover此tile，否则使用parent.
void FX3dtilesPyramid::update(const std::vector<Immutable<style::LayerProperties>>& layers,
const bool needsRendering,
const bool needsRelayout,
const TileParameters& parameters,
const std::string& filePath,
std::function<std::unique_ptr<Tile> (const FX3dTileID&, const math::mat4&)> createTile) {
// If we need a relayout, abandon any cached tiles; they're now stale.
if (needsRelayout) {
cache.clear();
}
// If we're not going to render anything, move our existing tiles into
// the cache (if they're not stale) or abandon them, and return.
if (!needsRendering) {
if (!needsRelayout) {
for (auto& entry : tiles) {
// These tiles are invisible, we set optional necessity
// for them and thus suppress network requests on
// tiles expiration (see `OnlineFileRequest`).
entry.second->setNecessity(TileNecessity::Optional);
cache.add(entry.first, std::move(entry.second));
}
}
tiles.clear();
renderedTiles.clear();
return;
}
// const std::string& fileName = filePath + "/tileset.json"; // 本地
const std::string& fileName = filePath; // 网络
if(tileset == nullptr) {
if (tilesetRequester == nullptr){
math::mat4 parentTransform;
tilesetRequester = new lkgl::TilesetRequester(fileName, parentTransform, parameters.fileSource);
tilesetRequester->load();
}
if (!tilesetRequester->loaded){
return;
}
tileset = tilesetRequester->getTileset();
tileset->setFileSource(parameters.fileSource);
}
tilegltf::FX3DTilesetTraversal traversal;
traversal.selectTiles(tileset, parameters.transformState);
tileset->requestTilesets();
// Stores a list of all the tiles that we're definitely going to retain. There are two
// kinds of tiles we need: the ideal tiles determined by the tile cover. They may not yet be in
// use because they're still loading. In addition to that, we also need to retain all tiles that
// we're actively using, e.g. as a replacement for tile that aren't loaded yet.
std::set<FX3dTileID> retain;
auto retainTileFn = [&](Tile& tile, TileNecessity necessity) -> void {
if (retain.emplace(tile.fx3dtileId).second) {
tile.setNecessity(necessity);
}
if (needsRelayout) {
tile.setLayers(layers);
}
};
auto getTileFn = [&](const FX3dTileID& tileID) -> Tile* {
auto it = tiles.find(tileID);
return it == tiles.end() ? nullptr : it->second.get();
};
auto createTileFn = [&](const FX3dTileID& tileID, const math::mat4& matrix) -> Tile* {
std::unique_ptr<Tile> tile = cache.pop(tileID);
if (!tile) {
tile = createTile(tileID, matrix);
if (tile) {
tile->setObserver(observer);
tile->setLayers(layers);
}
}
if (!tile) {
return nullptr;
}
return tiles.emplace(tileID, std::move(tile)).first->second.get();
};
auto previouslyRenderedTiles = std::move(renderedTiles);
auto renderTileFn = [&](const FX3dTileID& tileID, Tile& tile) {
addRenderTile(tileID, tile);
previouslyRenderedTiles.erase(tileID); // Still rendering this tile, no need for special fading logic.
tile.markRenderedIdeal();
};
std::set<const tilegltf::Tile*> parent3dTiles;
auto parent3dTileFn = [&](const tilegltf::Tile* tile) -> void {
parent3dTiles.emplace(tile);
};
renderedTiles.clear();
const std::vector<tilegltf::LoadRecord>& idealTiles = tileset->getTileLoadQueue();
algorithm::updateRenderablesFor3dtiles(getTileFn, createTileFn, retainTileFn,
renderTileFn, parent3dTileFn, idealTiles);
for (auto previouslyRenderedTile : previouslyRenderedTiles) {
Tile& tile = previouslyRenderedTile.second;
tile.markRenderedPreviously();
if (tile.holdForFade()) {
// Since it was rendered in the last frame, we know we have it
// Don't mark the tile "Required" to avoid triggering a new network request
retainTileFn(tile, TileNecessity::Optional);
addRenderTile(previouslyRenderedTile.first, tile);
}
}
cache.setSize(40);
// Remove stale tiles. This goes through the (sorted!) tiles map and retain set in lockstep
// and removes items from tiles that don't have the corresponding key in the retain set.
{
auto tilesIt = tiles.begin();
auto retainIt = retain.begin();
while (tilesIt != tiles.end()) {
if (retainIt == retain.end() || tilesIt->first < *retainIt) {
if (!needsRelayout) {
tilesIt->second->setNecessity(TileNecessity::Optional);
cache.add(tilesIt->first, std::move(tilesIt->second));
}
tiles.erase(tilesIt++);
} else {
if (!(*retainIt < tilesIt->first)) {
++tilesIt;
}
++retainIt;
}
}
}
// Remove parentRenderTile's children
for (auto& parent : parent3dTiles){
removeRenderedTile(parent);
}
// Initialize renderable tiles and update the contained layer render data.
for (auto& entry : renderedTiles) {
Tile& tile = entry.second;
assert(tile.isRenderable());
tile.usedByRenderedLayers = false;
const bool holdForFade = tile.holdForFade();
for (const auto& layerProperties : layers) {
const auto* typeInfo = layerProperties->baseImpl->getTypeInfo();
if (holdForFade && typeInfo->fadingTiles == LayerTypeInfo::FadingTiles::NotRequired) {
continue;
}
tile.usedByRenderedLayers |= tile.layerPropertiesUpdated(layerProperties);
}
}
}
template <typename GetTileFn,
typename CreateTileFn,
typename RetainTileFn,
typename RenderTileFn,
typename Parent3dTileFn>
void updateRenderablesFor3dtiles(GetTileFn getTile,
CreateTileFn createTile,
RetainTileFn retainTile,
RenderTileFn renderTile,
Parent3dTileFn parent3dTileFn,
const std::vector<tilegltf::LoadRecord>& idealTiles) {
std::unordered_set<FX3dTileID> checked;
bool covered = true;
for (auto& it : idealTiles) {
auto tile = getTile(it.pTile->id);
if (!tile) {
tile = createTile(it.pTile->id, it.pTile->transform);
if(tile == nullptr) {
continue;
}
}
// if (source has the tile and bucket is loaded) {
if (tile->isRenderable()) {
retainTile(*tile, TileNecessity::Required);
renderTile(it.pTile->id, *tile);
} else {
// We are now attempting to load child and parent tiles.
bool parentHasTriedOptional = tile->hasTriedCache();
bool parentIsLoaded = tile->isLoaded();
// The tile isn't loaded yet, but retain it anyway because it's an ideal tile.
retainTile(*tile, TileNecessity::Required);
covered = true;
// Check all child tiles.
for (const auto& childTile : it.pTile->children) {
tile = getTile(childTile->id);
if (tile && tile->isRenderable()) {
// do nothing
} else {
// At least one child tile doesn't exist, so we are going to look for
// parents as well.
covered = false;
break;
}
}
if (covered) {
for (const auto& childTile : it.pTile->children) {
tile = getTile(childTile->id);
retainTile(*tile, TileNecessity::Required);
renderTile(childTile->id, *tile);
}
} else {
const tilegltf::Tile* parent3dTile = it.pTile->getParent();
// We couldn't find child tiles that entirely cover the ideal tile.
while (parent3dTile != nullptr) {
const auto parentDataTileID = parent3dTile->id;
if (checked.find(parentDataTileID) != checked.end()) {
// Break parent tile ascent, this route has been checked by another child
// tile before.
break;
} else {
checked.emplace(parentDataTileID);
}
tile = getTile(parentDataTileID);
if (tile) {
if (!parentIsLoaded) {
// We haven't completed loading the child, so we only do an optional
// (cache) request in an attempt to quickly load data that we can show.
retainTile(*tile, TileNecessity::Optional);
} else {
// Now that we've checked the child and know for sure that we can't load
// it, we attempt to load the parent from the network.
retainTile(*tile, TileNecessity::Required);
}
// Save the current values, since they're the parent of the next iteration
// of the parent tile ascent loop.
parentHasTriedOptional = tile->hasTriedCache();
parentIsLoaded = tile->isLoaded();
if (tile->isRenderable()) {
renderTile(parentDataTileID, *tile);
parent3dTileFn(parent3dTile);
// Break parent tile ascent, since we found one.
break;
}
}
parent3dTile = parent3dTile->getParent();
}
} // end if !cover
} // end if
} // end for
} // end func
八、相机裁剪
3dtiles一般使用的是OBB包围盒，一般的做法是检测OBB是否都在视锥的六个平面之外。
遍历视椎体的6个面判断是否相交：
CullingResult
OrientedBoundingBox::intersectPlane(const Plane& plane) const noexcept {
const glm::dvec3 normal = plane.getNormal();
const glm::dmat3& halfAxes = this->getHalfAxes();
const glm::dvec3& xAxisDirectionAndHalfLength = halfAxes[0];
const glm::dvec3& yAxisDirectionAndHalfLength = halfAxes[1];
const glm::dvec3& zAxisDirectionAndHalfLength = halfAxes[2];
// plane is used as if it is its normal; the first three components are
// assumed to be normalized
const double radEffective = glm::abs(
normal.x * xAxisDirectionAndHalfLength.x +
normal.y * xAxisDirectionAndHalfLength.y +
normal.z * xAxisDirectionAndHalfLength.z) +
glm::abs(
normal.x * yAxisDirectionAndHalfLength.x +
normal.y * yAxisDirectionAndHalfLength.y +
normal.z * yAxisDirectionAndHalfLength.z) +
glm::abs(
normal.x * zAxisDirectionAndHalfLength.x +
normal.y * zAxisDirectionAndHalfLength.y +
normal.z * zAxisDirectionAndHalfLength.z);
const double distanceToPlane =
::glm::dot(normal, this->getCenter()) + plane.getDistance();
if (distanceToPlane <= -radEffective) {
// The entire box is on the negative side of the plane normal
return CullingResult::Outside;
}
if (distanceToPlane >= radEffective) {
// The entire box is on the positive side of the plane normal
return CullingResult::Inside;
}
return CullingResult::Intersecting;
}
九、渲染
1.bucket
将模型数据上传至GPU
void FX3dtilesBucket::upload(gfx::UploadPass &uploadPass) {
if (uploaded) {
return;
}
generateGPUBuffer(uploadPass);
generateTextures(uploadPass);
while (mCurrentMesh<(int16_t)model->meshes.size())
{
tinygltf::Mesh& mesh = model->meshes[mCurrentMesh];
while (mCurrentPrimitive<(int16_t)mesh.primitives.size())
{
uploadStep(uploadPass,mCurrentMesh,mCurrentPrimitive);
mCurrentPrimitive++;
}
mCurrentMesh++;
}
uploaded = true;
}
void FX3dtilesBucket::uploadStep(gfx::UploadPass&uploadPass, int meshesIndex, int primitiveIndex)
{
const tinygltf::Mesh& mesh = model->meshes[meshesIndex];
const tinygltf::Primitive& primitive = mesh.primitives[primitiveIndex];
FX3dtilesSegment *seg = new FX3dtilesSegment();
tinygltf::Material& material = model->materials[primitive.material];
if(material.alphaMode=="OPAQUE")
{
Segments.emplace_back(seg);
}else
{
translucentSegments.emplace_back(seg);
}
const tinygltf::Accessor& indexAccessor = model->accessors[primitive.indices];
assert(indexAccessor.componentType == TINYGLTF_COMPONENT_TYPE_UNSIGNED_INT);
seg->indexOffset = 0;
seg->indexLength = indexAccessor.count;
seg->indexBufferView = indexAccessor.bufferView;
std::vector<optional<gfx::AttributeBinding>> vecAttrBinding;
vecAttrBinding.resize(3);
for (auto attrIt : primitive.attributes)
{
auto& accessor = model->accessors[attrIt.second];
auto& bufferView = model->bufferViews[accessor.bufferView];
assert(accessor.bufferView < (int32_t)_gpuBufferViews.size());
auto& gpuBufferView = _gpuBufferViews[accessor.bufferView];
assert(gpuBufferView->vertexBuffer.has_value());
gfx::AttributeBinding attrBinding;
attrBinding.attribute.dataType = mapAttribuiteDataType(accessor.type);
attrBinding.attribute.offset = accessor.byteOffset;
attrBinding.vertexStride = bufferView.byteStride;
attrBinding.vertexOffset = 0;
attrBinding.vertexBufferResource = &gpuBufferView->vertexBuffer.value().getResource();
int32_t index = getAttributeIndex(attrIt.first, material.pbrMetallicRoughness.baseColorTexture.texCoord);
if (index != -1)
{
vecAttrBinding[index] = attrBinding;
}
}
seg->attributeBindings = {vecAttrBinding[0], vecAttrBinding[2]};
// 上传图片到GPU
tinygltf::Parameter ¶m = material.values.find("baseColorTexture")->second;
if (param.json_double_value.size() == 0) {
tinygltf::Parameter &colorParam = material.values.find("baseColorFactor")->second;
seg->bHasTexture = false;
if (material.name == "materialLightPole") {
seg->albedo = Point3D<float>(0.028426, 0.048172, 0.132868);
seg->metallic = 0.285714;
seg->roughness = 0.428571;
} else if (material.name == "SilveryMetal") {
seg->albedo = Point3D<float>(0.168269, 0.198069, 0.246201);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "WhitePaint") {
seg->albedo = Point3D<float>(0.991102, 0.991102, 0.991102);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "RedPaint") {
seg->albedo = Point3D<float>(0.665387, 0.009134, 0.008023);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "BluePaint") {
seg->albedo = Point3D<float>(0.006049, 0.061246, 0.520996);
seg->metallic = 0.428571;
seg->roughness = 0.285714;
} else if (material.name == "BlackPaint") {
seg->albedo = Point3D<float>(0.0, 0.0, 0.0);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "CementBlock") {
seg->albedo = Point3D<float>(0.095307, 0.093059, 0.095307);
seg->metallic = 0.428571;
seg->roughness = 0.714286;
} else if (material.name == "BrassMetal") {
seg->albedo = Point3D<float>(0.226966, 0.127438, 0.036889);
seg->metallic = 0.142857;
seg->roughness = 0.714286;
} else if (material.name == "GreenMetal") {
seg->albedo = Point3D<float>(0.03125, 0.05, 0.005);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "ParkingGround") {
seg->albedo = Point3D<float>(0.285871, 0.36, 0.0954);
seg->metallic = 0.0;
seg->roughness = 0.857143;
}
else if (material.name == "materialRoadSurface") {
// 路面颜色值
// seg->albedo = Point3D<float>(0.124772, 0.141263, 0.171441);
seg->albedo = Point3D<float>(0.177888, 0.174647, 0.226966);//路面基础颜色
seg->metallic = 0.428571;
seg->roughness = 0.714286;
} else if (material.name == "materialYellowLine") {
seg->albedo = Point3D<float>(0.135633, 0.082283, 0.001214);
seg->metallic = 0.571429;
seg->roughness = 0.285714;
} else if (material.name == "materialWhiteLine") {
seg->albedo = Point3D<float>(0.758376, 0.758376, 0.758376);
seg->metallic = 0.285714;
seg->roughness = 0.428571;
} else {
if (colorParam.number_array.size() > 0)
{
seg->albedo = Point3D<float>(colorParam.number_array[0], colorParam.number_array[1], colorParam.number_array[2]);
}
else
{
seg->albedo = Point3D<float>(1.0, 0.0, 0.0);
}
seg->metallic = 0.142857;
seg->roughness = 0.857143;
}
seg->metallic = 0.0;
seg->roughness = 0.9;
} else {
int index = param.TextureIndex();
const tinygltf::Image& image = model->images[index];
if (image.bufferView != -1) {
seg->mbTexture = mTextures[index]; // 可能多个primitive共用一个image
seg->loadedTexture= true;
} else if (!image.uri.empty()) {
//从纹理池取
seg->textureId = NormalizePath(image.uri);
// TODO: 临时
// seg->textureId = NormalizePath("funan/"+image.uri);
seg->mExtTexture = mTextureManager->getTexture(seg->textureId);
if (!seg->mExtTexture) {
seg->mExtTexture = mTextureManager->mSpaceTexture;
seg->loadedTexture= false;
} else
{
seg->loadedTexture= true;
}
}
seg->bHasTexture = true;
seg->metallic = 1.0;//有材质时默认金属度和粗糙度
seg->roughness = 1.0;
}
}
2.render
void FX3dtilesRender::render(PaintParameters& parameters) {
assert(render3dTiles);
if (parameters.pass != RenderPass::Opaque) {
return;
}
auto& context = static_cast<gl::Context&>(parameters.context);
const auto& evaluated = static_cast<const FX3dtilesLayerProperties&>(*evaluatedProperties).evaluated;
FX3dtilesProgram::Binders paintAttributeData { evaluated, 0 };
const auto depthMode = parameters.depthModeFor3D();
const TransformState& state = parameters.state;
math::mat4 projMat;
state.getProjectionMatrix(projMat);
math::mat4 viewMat;
state.getViewMatrix(viewMat);
math::mat4 invViewMat;
invViewMat *= viewMat;
math::mat4 modelMat;
state.getModelMatrix(modelMat);
math::mat4 mercatorToMapboxMat;
tilegltf::util::getMercatorToMapboxMat(mercatorToMapboxMat, state);
if (!render3dTiles->empty()) {
context.setDepthMode(depthMode);
context.setStencilMode(gfx::StencilMode::disabled());
context.setColorMode(parameters.colorModeForRenderPass());
context.setCullFaceMode(gfx::CullFaceMode::backCCW());
for (const Render3dTile& tile : *render3dTiles) {
auto* bucket_ = tile.getBucket(*baseImpl);
auto& bucket = static_cast<FX3dtilesBucket&>(*bucket_);
bucket.preRender();
auto& fx3dtile_ = tile.GetDataTile();
auto& fx3dtile = static_cast<const FX3dtilesTile&>(fx3dtile_);
math::mat4 tileModelMat;
tileModelMat *= mercatorToMapboxMat;
tileModelMat *= fx3dtile.getMatrix();
tileModelMat = modelMat * tileModelMat;
for (FX3dtilesSegment* seg : bucket.Segments) {
assert(seg->indexBufferView < (int32_t)bucket._gpuBufferViews.size());
auto& gpuBufferView = bucket._gpuBufferViews[seg->indexBufferView];
assert(gpuBufferView->indexBuffer.has_value());
drawTile(evaluated, paintAttributeData, parameters,
seg, gpuBufferView->indexBuffer.value(),
projMat, viewMat, tileModelMat);
}
}
}
}
3.shader
const char* fx3dtiles_vs() { return R"(precision highp float;
attribute vec3 a_pos3f;
attribute vec2 a_texture2f;
uniform mat4 u_proj_mat;
uniform mat4 u_view_mat;
uniform mat4 u_model_mat;
varying vec2 v_tex_coord;
void main() {
v_tex_coord = a_texture2f;
vec4 loc_pos = u_model_mat * vec4(a_pos3f, 1.0);
gl_Position = u_proj_mat * u_view_mat * loc_pos;
}
)"; }
const char* fx3dtiles_fs() { return R"(precision highp float;
varying vec2 v_tex_coord;
uniform sampler2D u_color_map;
uniform float u_is_has_texture;
void main() {
vec4 color = vec4(1.0, 0.0, 0.0, 1.0);
if (u_is_has_texture > -1.0) {
color = texture2D(u_color_map, v_tex_coord);
}
else
{
color = vec4(1.0, 0.0, 0.0, 1.0);
}
gl_FragColor = color;
}
)"; }
